French SSBS

Photo Gallery

SSBS missiles

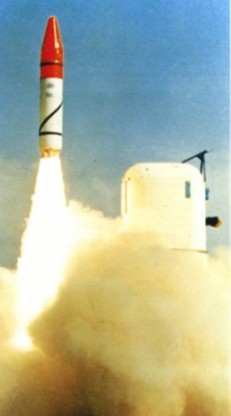

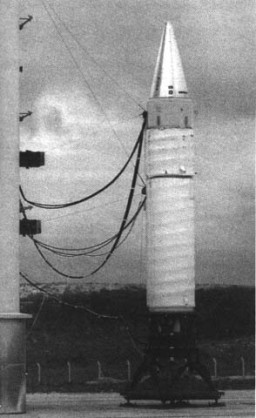

SSBS S01 & SSBS S02

Technical data S01

Stage	Engine	Thrust s.l.	Isp s.l.	Thrust vac	Isp vac	Propellant		Burn time	Flow rate	Total Imp
-	-	kN	N*s/kg	kN	N*s/kg		tons	s	t/s	MN*s
P16	SEP 901 (4)	534.4	2380	594.5	2648	Isolane	16.16	72	0.2245	42.4

Core Diameter: 1.50 m. Total Length ? m. Total Mass ? kg.

Technical data S02

Stage	Engine	Thrust s.l.	Isp s.l.	Thrust vac	Isp vac	Propellant		Burn time	Flow rate	Total Imp
-	-	kN	N*s/kg	kN	N*s/kg		tons	s	t/s	MN*s
P16	SEP 902 (4)	534.4	2380	594.5	2648	Isolane	16.16	72	0.2245	42.4
P10	SEP 903			320.0	2667	Isolane	9.90	82	0.1208	26.2

Core Diameter: 1.50 m. Total Length 14,80 m. Total Mass 31,900 kg.

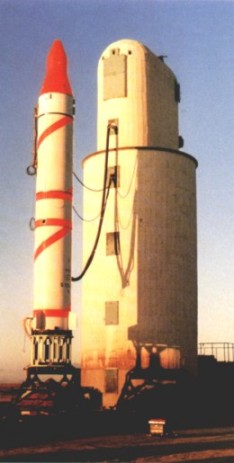

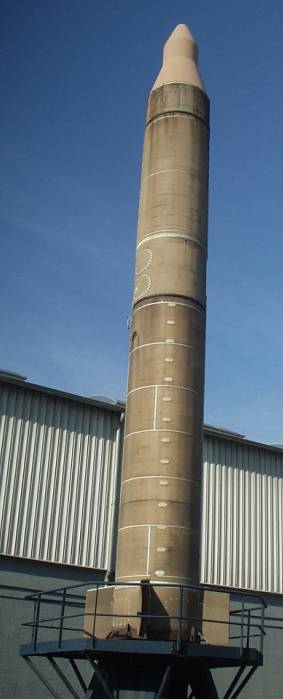

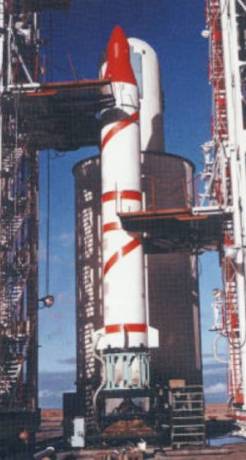

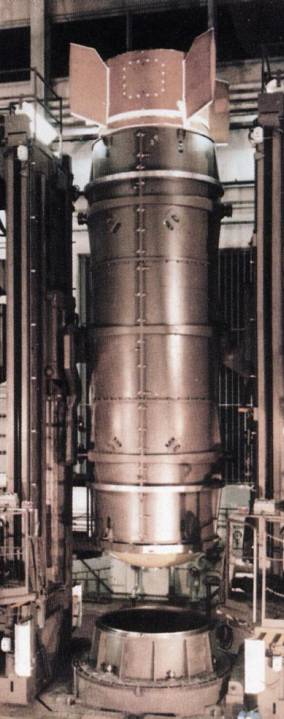

SSBS S2

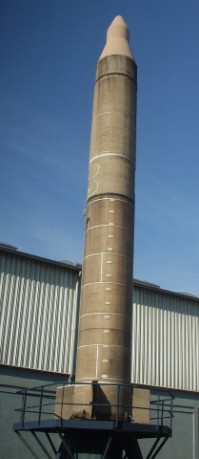

SSBS S2

Technical data

Stage	Engine	Thrust s.l.	Isp s.l.	Thrust vac	Isp vac	Propellant		Burn time	Flow rate	Total Imp
-	-	kN	N*s/kg	kN	N*s/kg		tons	s	t/s	MN*s
P16	SEP 902 (4)	534.4	2380	594.5	2648	Isolane	16.16	72	0.2245	42.8
P10	SEP 903			320.0	2667	Isolane	9.90	82	0.1208	26.2

Core Diameter: 1.50 m. Total Length 14.80 m. Total Mass: 31,890 kg.

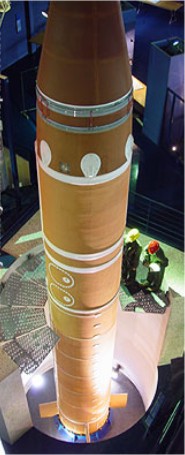

SSBS S3

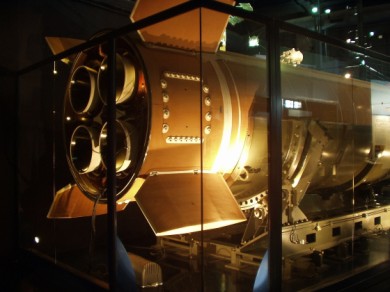

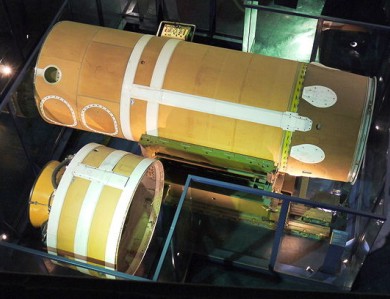

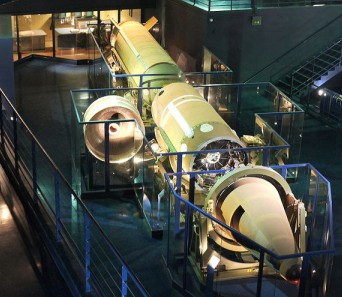

SSBS S3 second stage assembly

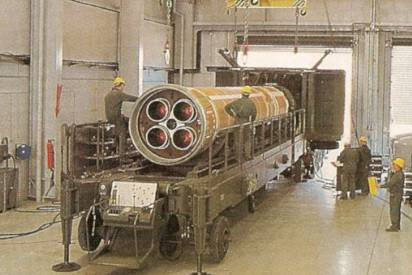

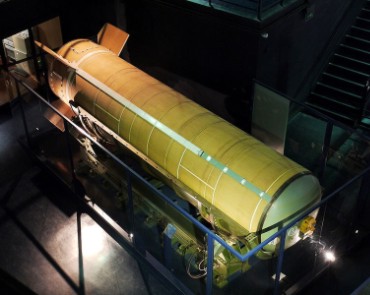

First stage P16

P16 SEP 902

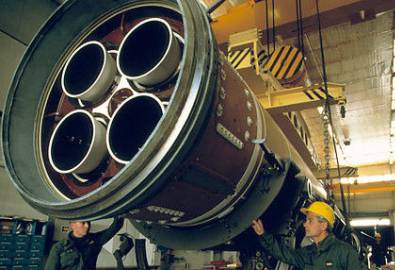

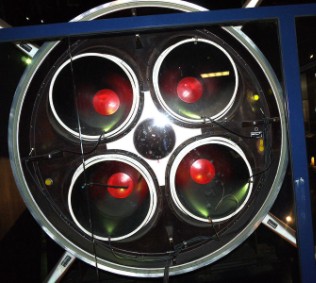

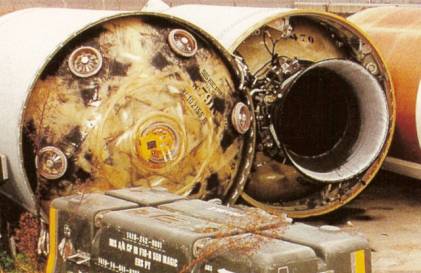

Rear first stage

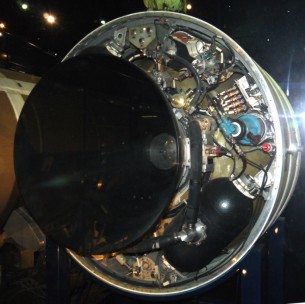

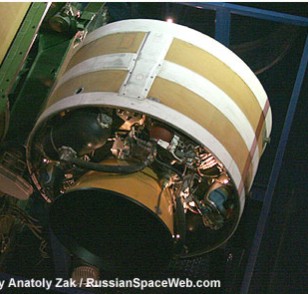

SSBS S3 second stage Rita-II

Technical data

Stage	Engine	Thrust s.l.	Isp s.l.	Thrust vac	Isp vac	Propellant		Burn time	Flow rate	Total Imp
-	-	kN	N*s/kg	kN	N*s/kg		tons	s	t/s	MN*s
P16	SEP 902 (4)	534.4	2380	594.5	2658	Isolane	16.16	72	0.2245	42.8
P6	Rita II			176.5	2677	Isolane	5.93	90	0.0656	15.9

Core Diameter: 1.50 m. Total Length: 13.81 m. Span: 2.62 m. Total Mass: 25,750 kg.
