Propulsion Titan II
|
|
|
|
|
|
Stage 1
|
Launcher |
Engines |
Thrust s.l. |
Isp s.l. |
Thrust vac |
Isp vac |
Propellant |
Burn time |
Flow rate |
Total Imp |
|
kN |
N*s/kg |
kN |
N*s/kg |
tons |
s |
t/s |
MN*s |
||
|
Titan 23G |

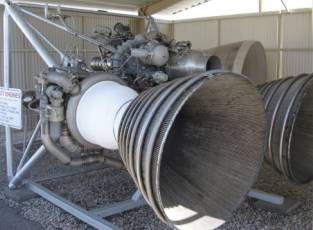

LR-87-AJ-5 (2) |
1,734.8 |
2388 |
2,108.5 |
2903 |
114.79 |
158 |
0.7265 |
333.2 |
|
Titan 2 |
LR-87-AJ-7 (2) |
1,912.8 | 2432 | 2,313.1 | 2941 | 111.13 | 141.3 | 0.7865 | 326.8 |
Stage 2
|
Launcher |
Engines |
Thrust s.l. |
Isp s.l. |
Thrust vac |
Isp vac |
Propellant |
Burn time |
Flow rate |
Total Imp |
|
kN |
N*s/kg |
kN |
N*s/kg |
tons |
s |
t/s |
MN*s |
||
|
Titan 23G |

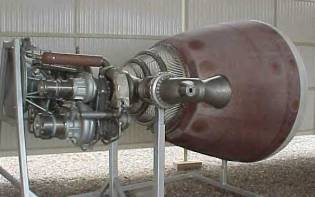

LR-91-AJ-5 |
444.8 | 3094 | 26.60 | 185 | 0.1438 | 82.3 | ||
|
Titan 2 |
LR-91-AJ-7 |
453.7 | 3094 | 26.75 | 182.5 | 0.1466 | 82.8 |
|
|
Upper stages Titan 23G
|
Stage |
Engines |
Thrust s.l. |
Isp s.l. |
Thrust vac |
Isp vac |
Propellant |
Burn time |
Flow rate |
Total Imp |
|
kN |
N*s/kg |
kN |
N*s/kg |
tons |
s |
t/s |
MN*s |
||
|

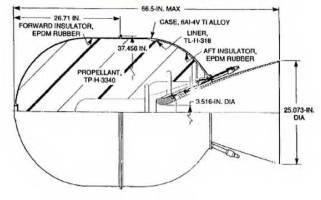

Star 37FM |
TE-M-783 |
47.26 | 2862 | 1.066 | 64.5 | 0.0165 | 3.05 | ||
|
Star 37XFP |
TE-M-714-16 |
37.81 | 2869 | 0.884 | 67.0 | 0.0132 | 2.54 |
